Integrated Hinges 105 for Corner Doors

Description

Technical specifications:
• Depth of the metal cup 11.3mm
• Cup diameter 35mm

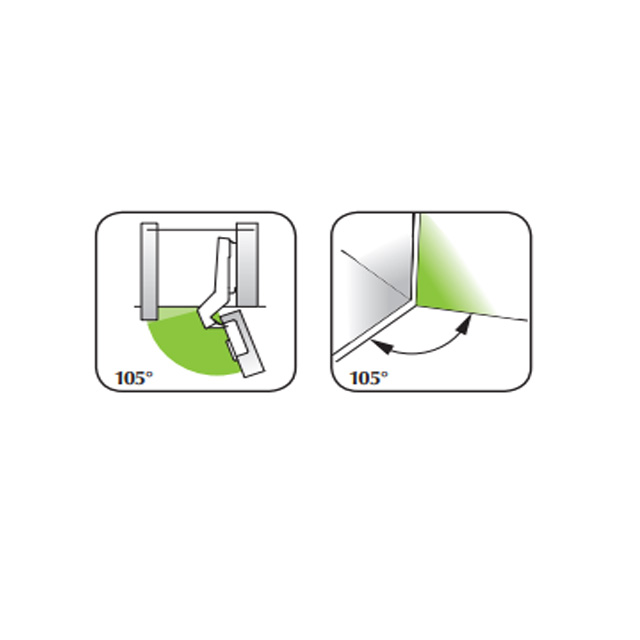

• Opening 105°

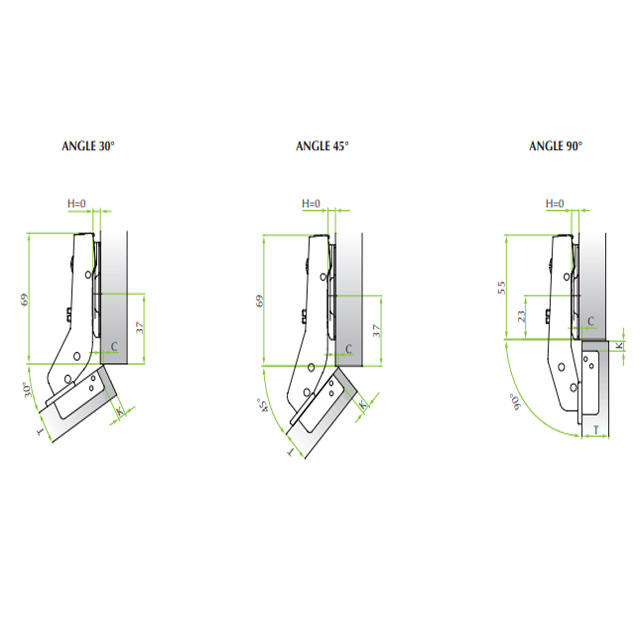

• Possibility of door drilling (K) from 3 to 7 mm
• Thickness of the door (T) from 16 to 26 mm
• SlowMotion solution with linear damper
